In the world of low-voltage electrical installations, ensuring the reliable and safe operation of systems is paramount. One of the most important factors to consider during project design and installation is voltage drop. Failing to account for voltage drop can lead to poor system performance, non-compliance with codes, wasted energy, and even damage to sensitive equipment. Fortunately, Windy City Wire provides a user-friendly Voltage Drop Calculator that makes this critical calculation easier and more accurate than ever.

What is Voltage Drop?

Voltage drop refers to the reduction in voltage as electrical current travels through a wire due to resistance. Every conductor has some resistance, and as current flows through it, some energy is lost in the form of heat. The longer the wire or the higher the current, the greater the voltage drop.

For installers and engineers, excessive voltage drop can result in devices not receiving enough voltage to operate properly, dimming of lights, malfunctioning of equipment, or even increased fire risk. The National Electrical Code (NEC) recommends keeping voltage drop under 3% for branch circuits and under 5% for feeders and branch circuits combined, to ensure safe and efficient operation.

Why Voltage Drop Calculations Matter

Not accounting for voltage drop in electrical installations can have several negative effects, especially in low-voltage and long-run applications common to low-voltage installers and engineers. Here are some of the primary concerns:

1. Poor System Performance

• Equipment Malfunction: Devices such as cameras, access controls, and lighting may not receive their required voltage, leading to erratic operation, intermittent failures, or total inoperability.
• Dimmed Lights or Sound Distortion: Lighting might appear dimmer, and audio/visual equipment may function below specs, resulting in poor end-user experience.

2. Increased Safety Risks

• Overheating Wires: Excessive voltage drop means the conductors are working harder and may overheat, increasing the risk of insulation breakdown or even fire.
• Tripped Breakers and Blown Fuses: Protective devices may trip more frequently, causing nuisance outages and signaling underlying wiring issues.

3. Reduced Efficiency and Higher Costs

• Energy Waste: Losses due to excessive voltage drop translate into wasted energy, meaning higher operational costs for the end user.
• Premature Equipment Failure: Motors, power supplies, and sensitive electronics are stressed by undervoltage, leading to early breakdown and costly replacements.

4. Non-Compliance with Electrical Codes

• Failed Inspections: Installations not meeting the NEC recommendations for voltage drop (generally a maximum 3% per run or 5% total) can result in failed inspections, costly rework, and project delays.
• Potential Liabilities: Failing to adhere to code can expose contractors and engineers to legal liabilities if an electrical incident occurs.

5. Troubleshooting and Maintenance Issues

• Difficult Diagnostics: Voltage drop problems can mimic equipment failures or signal cable faults, leading to time-consuming and costly troubleshooting.
• Unhappy Clients: Repeated service calls, callbacks, and system downtime damage your reputation and customer trust.

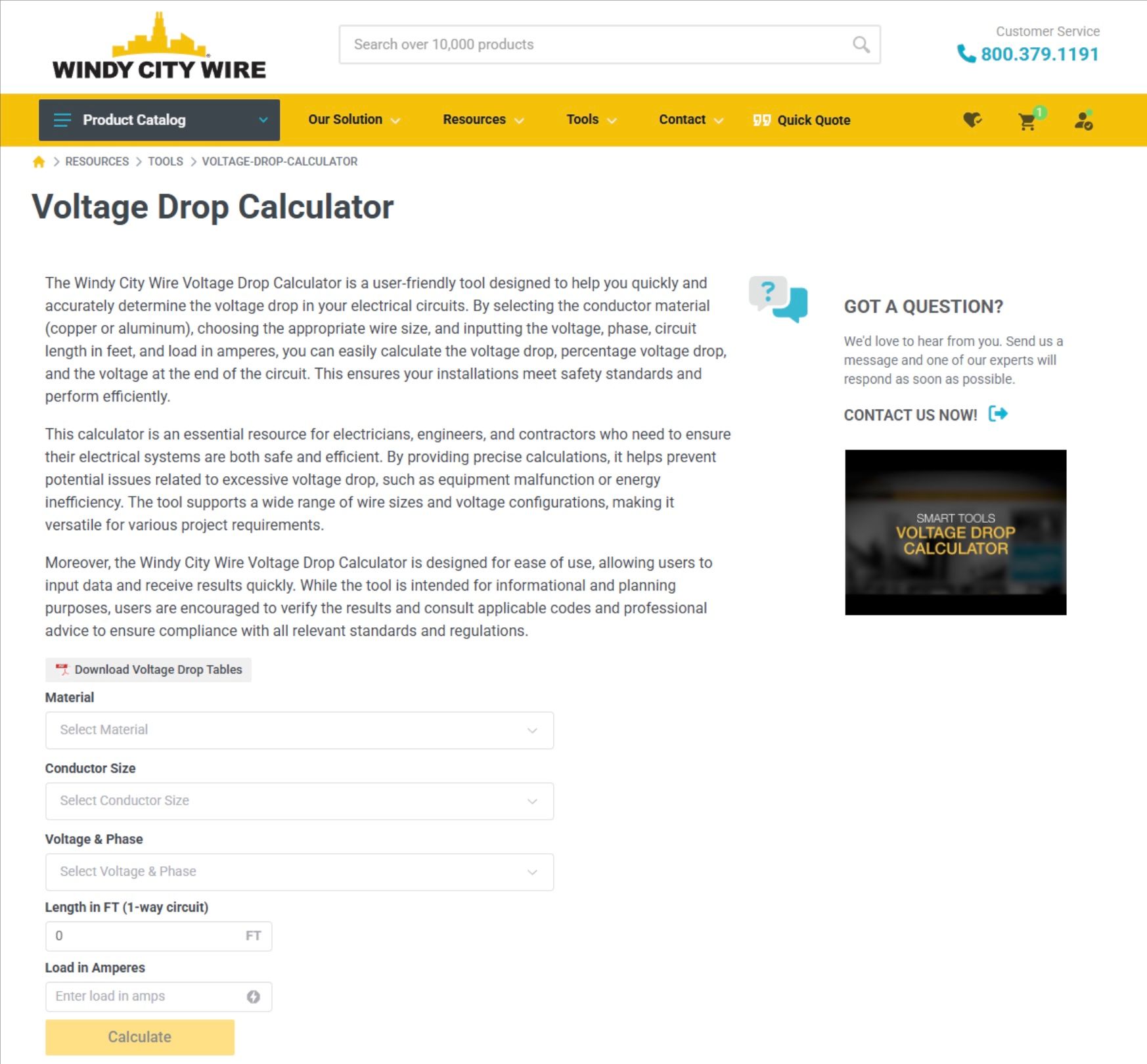

How Windy City Wire’s Voltage Drop Calculator Can Help

Calculating voltage drop can be complex. It requires considering multiple factors, such as conductor size, material (copper or aluminum), circuit length, load amperage, and system voltage. Doing these calculations manually is not only tedious but also prone to error, especially when dealing with multiple circuits and varying installation conditions.

Windy City Wire’s Voltage Drop Calculator streamlines this process for low-voltage installers and engineers. Our tool is designed with user-friendliness in mind, allowing you to:

• Input essential variables: Conductor size, material, voltage, length, and load.
• Instantly visualize results: See the percentage voltage drop and determine if your design aligns with NEC recommendations.
• Compare scenarios: Easily adjust variables to see how different wire sizes or materials affect voltage drop and project costs.
• Optimize safety and efficiency: Ensure equipment gets the power it needs, preventing troubleshooting headaches later on.
• Generate documentation: Print or save results for project records, compliance, or customer approval.

Using Windy City Wire’s calculator during the design phase allows you to confidently engineer your project and communicate your choices to customers or inspectors.

Plan for Compliance and Performance with Windy City Wire

Voltage drop should never be an afterthought. Accurate calculations are key to safe, compliant, and efficient electrical installations. By leveraging Windy City Wire’s Voltage Drop Calculator, you can eliminate guesswork, optimize your wire selection, and ensure every project meets the highest standards.

Don’t leave your next installation to chance—start planning with confidence. Try the Windy City Wire Voltage Drop Calculator today and experience seamless project design from start to finish!

Learn more about our innovative solutions and explore all of our installer resources at windycitywire.com.
