Accurately calculating voltage drop is essential for ensuring performance, safety, and code compliance on every electrical project—especially in low-voltage applications. At Windy City Wire, we know how critical these calculations are for integrators, engineers, and installers who work with structured cabling, security systems, access control, AV, and other low-voltage systems.

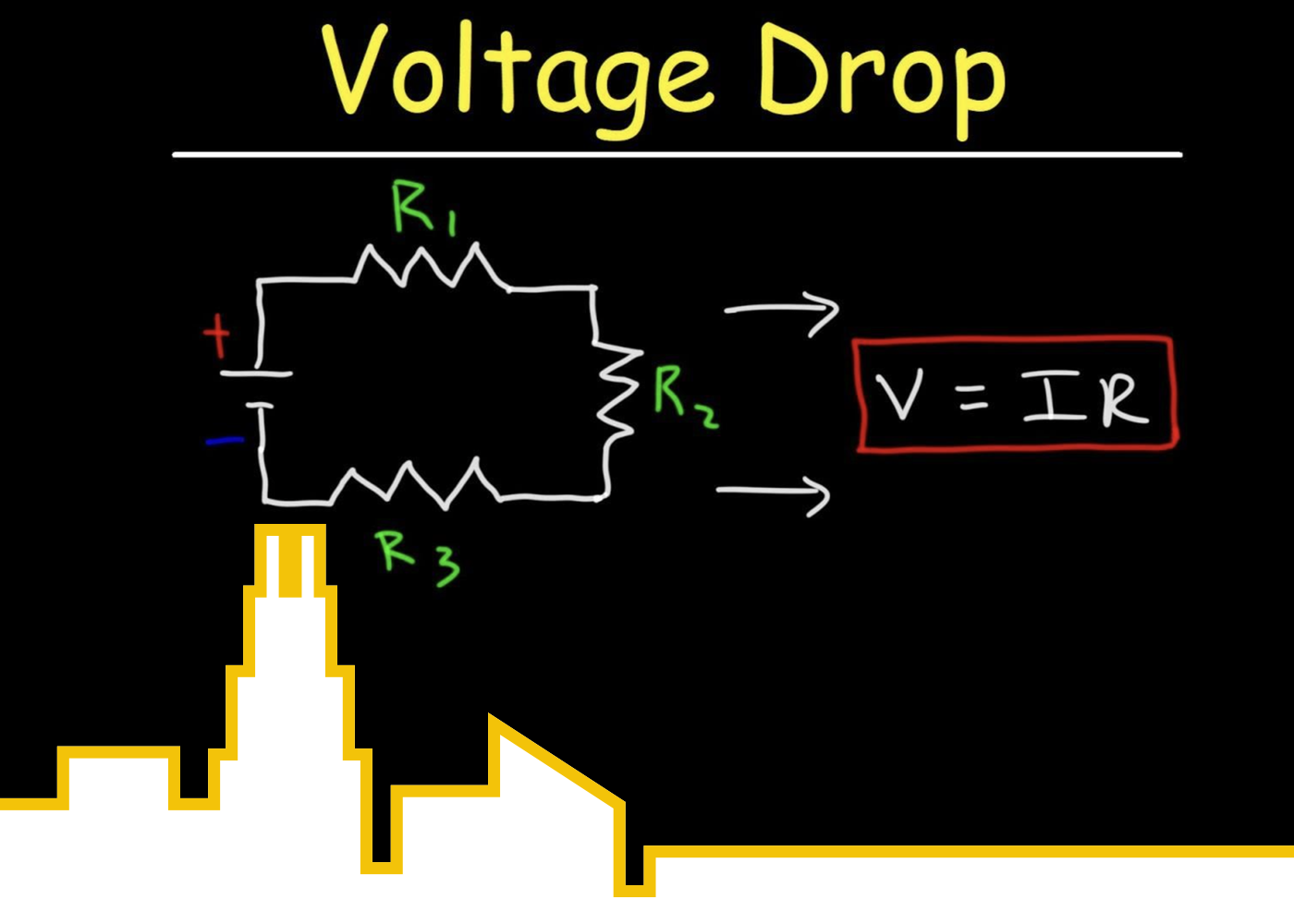

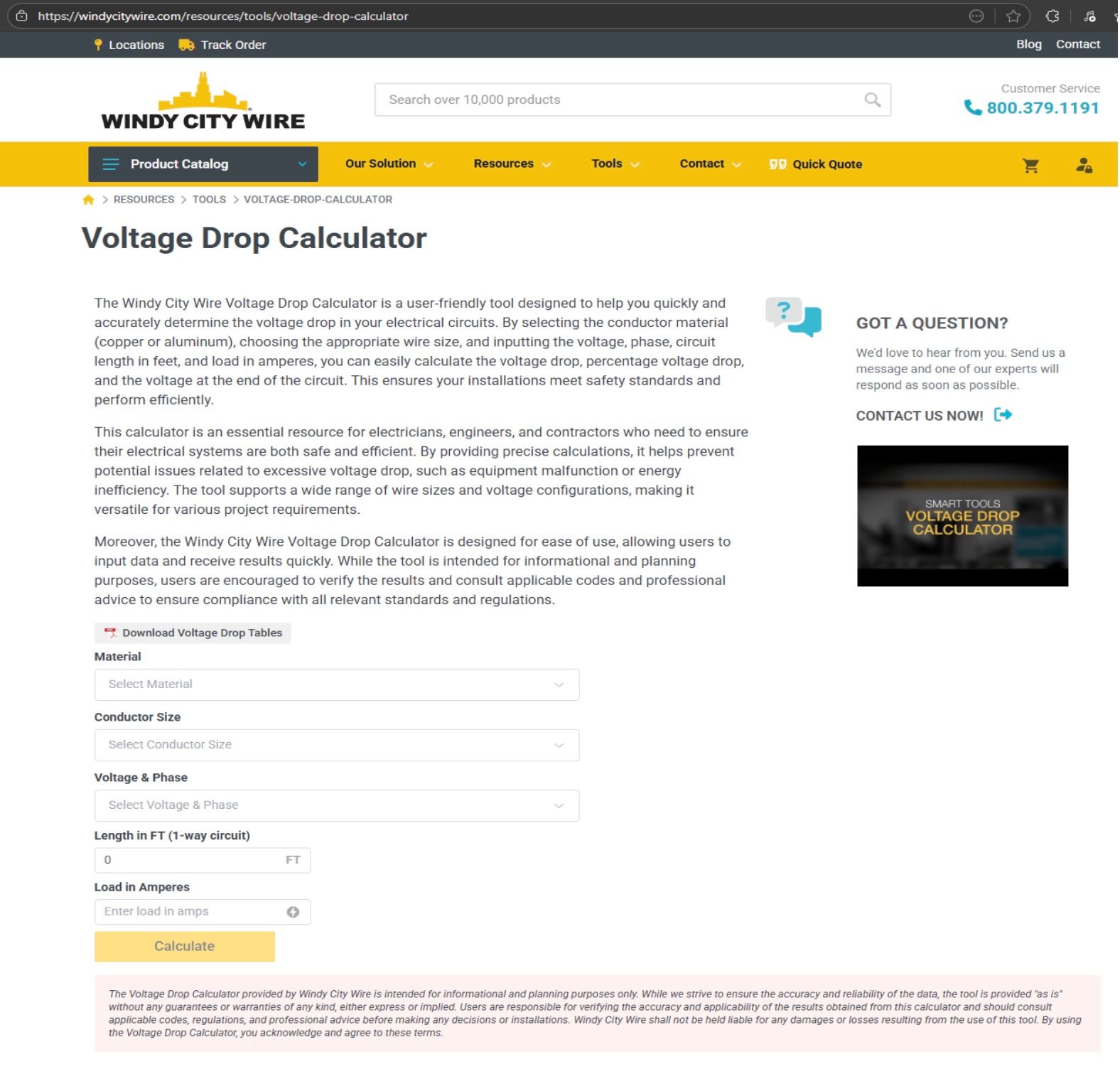

To support our customers, we offer a powerful and easy-to-use Voltage Drop Calculator that helps simplify the process. But to get the most accurate results, it’s important to understand and apply a few key best practices.

Here are our top tips for using the calculator to its full potential:

1. Select the Right Conductor Material

One of the first inputs you’ll be asked to select in our Voltage Drop Calculator is the conductor material: Copper or Aluminum. This choice significantly affects the resistance of the conductor, and, in turn, your voltage drop.

• Copper is the most common choice in low-voltage applications due to its superior conductivity and durability.
• Aluminum may be used in certain applications where cost or weight is a factor, but it has higher resistance and will produce greater voltage drop for the same size and length.

✅ Best Practice: Always match your calculator input to the actual material used in your installation. Don’t assume copper unless confirmed.

2. Account for Ambient Temperature Conditions

Temperature has a direct impact on conductor resistance. As ambient temperatures increase, so does resistance—resulting in a higher voltage drop.

• While our calculator uses standard reference conditions, it’s important to adjust wire size or design tolerances if your project operates in higher-than-normal ambient temperatures (e.g., attics, rooftops, or outdoor enclosures).

✅ Best Practice: When working in high-temp environments, consider upsizing your conductor to offset increased resistance due to heat.

3. Understand Your Load Requirements

The load in amperes (current) is a primary driver of voltage drop. Entering accurate load data is crucial.

• Use real-world or worst-case current values—not averages. If the current fluctuates, use the maximum expected load.
• Remember that long runs, especially in power-hungry systems like access control or PoE lighting, can see significant voltage drop even at lower voltages.

✅ Best Practice: Always calculate for peak current draw and use conservative assumptions to ensure reliable performance.

4. Use the Correct Circuit Length

The Voltage Drop Calculator requires the one-way length of the circuit (from source to load). However, voltage drop occurs over the round-trip path (outbound and return), which the calculator factors in automatically.

✅ Best Practice: Just enter the one-way distance of the wire run—our calculator takes care of the rest.

5. Choose the Right Voltage and Phase

Ensure you select the correct system voltage and phase type (single-phase or three-phase) to match your actual electrical design. This affects the calculation method and resulting voltage drop.

✅ Best Practice: Double-check your system specs to avoid errors in your base voltage or phase configuration.

6. Verify Percent Voltage Drop and Code Compliance

Our Voltage Drop Calculator displays both the actual voltage drop and the percentage. For many systems:

• 3% voltage drop is a typical design goal.
• For longer runs or sensitive electronics, a 2% or lower target may be recommended.

✅ Best Practice: Use the percentage drop to evaluate whether your design meets project or code requirements, and adjust wire gauge accordingly.

Why Use the Windy City Wire Voltage Drop Calculator?

Our Voltage Drop Calculator is designed with simplicity and precision in mind. With a few inputs, you get fast, accurate results to help you:

• Size your wire correctly
• Avoid underpowered devices
• Stay compliant with NEC and local codes
• Eliminate guesswork in the field

Whether you're wiring up a large commercial building or a compact security system, our calculator ensures you have the data to make informed decisions from the start.

Final Thought

Voltage drop isn’t just a theoretical concern—it has real impacts on system reliability, performance, and safety. Taking the time to calculate it accurately can save you from costly callbacks, failed inspections, or underperforming systems.

At Windy City Wire, we’re committed to giving integrators and contractors the tools they need to succeed. Bookmark our Voltage Drop Calculator and use these tips on your next job to ensure precision from planning to power-up.

→ Try the Windy City Wire Voltage Drop Calculator now
