Fiber optic cables have become the core of modern data transmission systems, providing unparalleled speed and reliability for networks of all sizes. Choosing the fiber optic cable allows long-term network efficiency and scalability in data centers, corporate networks, or other high-performance environments. Two popular multimode fiber types—OM1 and OM3—offer different performance characteristics that suit different applications.

We explore the key differences between OM1 and OM3 fiber cables, focusing on performance metrics like data transmission speed, core size, light source technology, and ideal use cases. Understanding these differences will help you choose the fiber optic cable for your high-speed network infrastructure.

Understanding Multimode Fiber Optic Cables

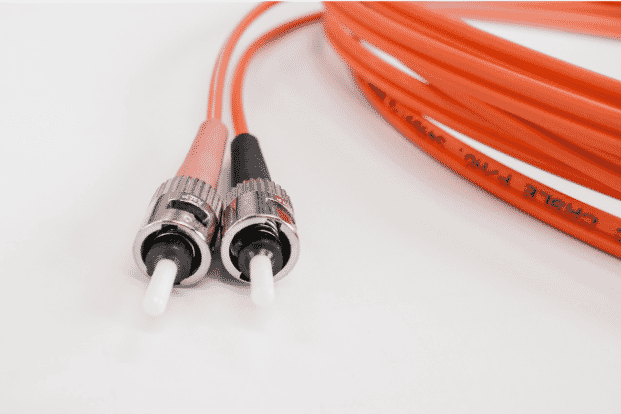

Multimode fiber optic cables, like OM1 and OM3, are designed to carry multiple light signals or "modes" simultaneously. These cables are optimized for short to medium distances, making them perfect for high-speed local area networks (LANs), data centers, and other settings where fast data transfer over shorter distances is critical.

Here’s a quick overview of how multimode fiber compares with single-mode fiber.

• Multimode fiber supports high bandwidth but is limited to shorter distances due to signal attenuation caused by multiple light paths. It is commonly used in enterprise settings.
• Single-mode fiber supports data transmission over long distances (up to several kilometers) and is often used in large-scale networks.

Both OM1 and OM3 are commonly used with multimode fiber. However, the cables differ in performance, core size, and the types of applications they support, making understanding their differences crucial for network planning.

Key Technical Differences Between OM1 and OM3 Cables

The primary differences between OM1 and OM3 fiber optic cables are their core size, light source technology, and data transmission capacity. These factors directly influence how well each cable type performs in specific network environments.

Core Size

• OM1 fiber features a 62.5-micron (µm) core.
• OM3 fiber has a smaller 50-micron (µm) core.

The core size affects how much light can pass through the cable, and larger cores like OM1’s allow more light modes. However, more modes also mean greater dispersion, limiting how fast and far data can travel. OM3’s smaller core enables faster data transmission with less signal loss, making it more efficient over longer distances and at higher speeds.

Light Source Technology

• OM1 typically uses LED light sources, which are slower and more limited in data transmission speed.
• OM3 supports up to 10 Gbps over distances of 300 meters and can handle up to 40 Gbps and 100 Gbps over shorter distances.

This massive leap in data transmission speed and bandwidth makes fiber OM3 the preferred option for modern high-speed networks, particularly in data centers and enterprise-level applications where fast, reliable data transfer is essential.

Applications and Use Cases for OM1 and OM3 Fiber

While OM1 and OM3 fiber cables are designed for multimode data transmission, their distinct technical characteristics make them suitable for different applications.

OM1 Applications

OM1 fiber is typically used in older, legacy systems or in environments where lower data transmission speeds are sufficient. Common applications include:

• Legacy LANs: Many older local area networks (LANs) still use OM1 because their bandwidth needs are limited, and the existing infrastructure supports lower speeds.
• Private Networks: For smaller private networks, OM1 provides a cost-effective solution for data transmission where high speeds aren’t necessary.
• Short-Haul Networks: OM1 is often used in applications where the distance is short (up to 100 meters) and the data transmission requirements are modest.

OM3 Applications

OM3 fiber is designed for high-performance environments where fast data transmission and high bandwidth are critical. Common applications include:

• Data Centers: OM3 is widely used in data centers where large amounts of data must be transmitted quickly and efficiently. It’s the go-to choice for 10Gbps Ethernet and beyond.
• Corporate Networks: Large corporate networks and campus environments rely on OM3 because it can handle high data rates and longer cable runs.
• High-Speed Ethernet Networks: OM3 fiber supports 10Gbps, 40Gbps, and 100Gbps Ethernet, making it a key component of modern, high-performance Ethernet networks.

In short, OM3 is the standard for networks that require fast, reliable data transmission over medium distances (up to 300 meters) and is better suited for environments with high bandwidth demands.

Why OM3 Fiber is Preferred for High-Speed Networks

As businesses and organizations rely more on fast, efficient data transfer, OM3 fiber has emerged as the preferred choice for high-speed networks. Its superior performance characteristics make it ideal for all networks when scaling to meet growing data demands.

High Data Rates

OM3 supports high-speed data transmission, handling up to 100Gbps Ethernet in short-range applications. Its ability to accommodate these higher data rates makes it ideal for industries that require fast, large-scale data transfer, such as cloud computing and media streaming.

Reduced Latency

The smaller core size and laser-based VCSEL technology in OM3 fiber allow for faster data transmission with reduced latency. This is especially important for applications with critical real-time data, such as video conferencing, telemedicine, and financial trading.

Scalability

One of OM3 fiber’s most significant advantages is its scalability. As network demands grow, OM3’s ability to handle faster data rates ensures it can meet all bandwidth needs without needing costly cable replacements or upgrades. This makes OM3 a sound investment for organizations looking to scale their network infrastructure efficiently.

Choosing the Right Fiber for Your Network

Several factors should influence your choice between OM1 and OM3 fiber, including budget, network performance requirements, and scalability.

Budget

OM1 fiber is generally more affordable than OM3, making it a good choice for smaller networks or systems where high-speed data transfer is not required. However, OM1's performance limitations may make it unsuitable for network upgrades or expansions.

Network Performance Requirements

OM3 is the clear winner for networks that need to support high data rates and bandwidth. If your network handles applications like 10Gbps Ethernet or requires longer-distance data transmission, OM3’s performance characteristics make it a must.

Making A Final Decision On Fiber Optic Cables

When comparing OM1 and OM3 fiber optic cables, the performance advantages of OM3 make it the superior choice for high-speed network environments. With greater bandwidth, faster data transmission rates, and support for longer distances, OM3 is the standard for modern networks that require efficiency and scalability. While OM1 may still be helpful in legacy systems or small-scale networks, OM3 is the optimal solution for data centers, corporate networks, and any environment requiring high-performance data transmission.

At Windy City Wire, we offer a wide range of SmartFIBER optic cables created to meet your network's unique requirements. Explore our selection of fiber OM3 products and contact our team to ensure your network operates at peak performance.
