Choosing the right cabling for security systems is essential to ensure dependable performance and robust system integrity. Whether for surveillance cameras, access control systems, or alarms, the cables connecting these components are essential in maintaining reliable, high-quality signal transmission. A carefully selected cable minimizes interference and durability and contributes to a system's overall security and functionality.

This guide will explore different types of cables used in security applications, including security and access control cables, CCTV wiring, and alarm system connections. Each type of system has specific cabling needs that directly impact its efficiency, performance, and longevity. For instance, a durable cable with adequate shielding can ensure clear video signals in CCTV, while specialized wires for access control systems can enhance security through reliable connectivity.

This blog aims to provide individuals with the information they need to make informed decisions about security cabling. With a focus on essential features, best practices, and application scenarios, this guide will help readers select cabling solutions that match their technical and operational requirements, ensuring the reliability of their security systems.

Basics of Security System Cabling

Selecting the right cabling for security systems requires understanding key elements such as conductor materials, cable types, and the role of shielding and insulation in preserving signal integrity. Each component impacts the system’s efficiency and long-term performance.

Conductor Materials: The conductor material in a cable is important for signal quality and transmission efficiency. Copper is widely used in security cables due to its excellent conductivity, allowing clear signal transmission and reduced data loss. While aluminum may sometimes be a more cost-effective option, it doesn’t perform as well as copper in signal quality and durability. Choosing high-quality copper conductors is particularly important in security applications where clear, uninterrupted signals are necessary.

Cable Types: Security systems typically use various cable types suited to specific applications. Coaxial cables, such as RG59, are commonly used for analog CCTV systems and offer solid signal transmission for video. Twisted pair cables, like Cat5e or Cat6, are often selected for IP cameras due to their ability to support Power over Ethernet (PoE) technology, reducing the need for separate power cables. Fiber optic cables, known for their high bandwidth and resistance to electromagnetic interference, are an excellent choice for large-scale projects or high-traffic environments.

Shielding and Insulation: Shielding and insulation protect the integrity of signals by reducing electromagnetic interference (EMI) and preventing crosstalk between cables. Shielding for security wires is especially important in environments with high EMI, ensuring that sensitive data remains uncompromised. Proper insulation also enhances durability, protecting the cable from environmental factors and extending its lifespan.

Cabling for Access Control Systems

Access control systems, which manage entry to secure areas using technologies such as card readers, biometric scanners, and keypads, rely heavily on dependable cabling to maintain security and functionality. Selecting the right cables for these systems ensures reliable data transmission and power delivery, supporting smooth operation and enhanced protection.

Reader-to-Panel Connections: One of the most important aspects of using security and access control cables is connecting readers (e.g., card readers, biometric devices) to the control panel. These connections often require multi-conductor cables, such as 6-conductor cables, to manage the complex data exchange between the reader and the panel.

Proper shielding is essential here, as it reduces data interference risk and maintains transmitted signals' integrity. Security and access control cables can ensure access points respond quickly and accurately to credential verification, maintaining system security.

Lock Powering: Electric locks, which rely on a stable power source to function, need cables capable of delivering consistent power without significant voltage drop. Choosing cables with the appropriate gauge for the distance and current requirements is crucial to avoid power loss. Heavier gauge cables are preferred for long runs to prevent voltage drop, ensuring that electric locks remain operational. Additionally, selecting durable, insulated cables can prevent wear and tear over time, especially in high-traffic access points.

Network Integration: Many modern access control systems are integrated into broader security networks, requiring network cables to connect various system components. For these cases, twisted pair cables, such as Cat5e or Cat6, are commonly used. They provide robust data transmission and support Power over Ethernet (PoE) when necessary. This setup simplifies by allowing both power and data to run over a single cable. Selecting high-quality network cables for integration into wider security networks helps prevent data loss and ensures consistent performance across the entire system.

Choosing Cables for Surveillance Cameras

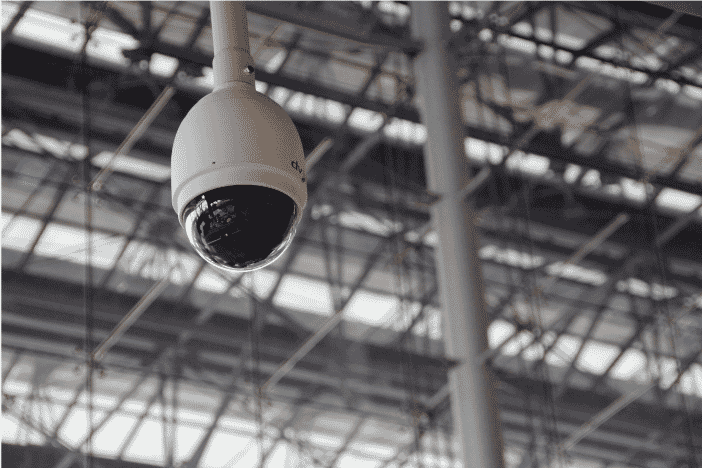

Surveillance cameras, a core component of many security systems, require specific cabling solutions to ensure high-quality video transmission and durability in varying environmental conditions. Choosing the right cable type depends on the camera technology (analog or IP) and the project environment.

Analog and IP Cameras: Coaxial cables like RG59 are a common choice for analog cameras due to their ability to transmit video signals with minimal interference over short to moderate distances. However, to avoid signal degradation, the cable’s impedance must be matched to the camera and recording equipment.

Twisted pair cables like Cat5e and Cat6 are often used for IP cameras. These cables support Power over Ethernet (PoE), allowing both power and data to be transmitted over a single cable, simplifying the setup. Cat6 cables are generally recommended for longer distances or high-resolution cameras, as they support greater bandwidth and reduce the risk of signal loss.

Outdoor Cabling Considerations: For outdoor projects, choosing harsh weather security cables with UV-resistant jackets is essential to withstand sunlight, moisture, and temperature fluctuations, ensuring long-lasting performance in outdoor surveillance setups. Weatherproof cables, typically equipped with UV-resistant jackets, are ideal for outdoor surveillance applications. Additionally, cables with added protective layers, such as double shielding, can protect against electromagnetic interference (EMI) from nearby power sources or equipment, ensuring consistent signal quality. Choosing durable cables for outdoor setups minimizes the risk of performance issues due to environmental wear and tear.

Properly selected cables contribute to clear, uninterrupted video transmission, enhancing the effectiveness of surveillance systems. By investing in cables that match the specific needs of the camera type and project environment, security professionals can ensure long-lasting, reliable video quality that meets the demands of modern surveillance systems.

Alarm System Cabling

Alarm systems, which include a variety of sensors and alert devices, require specific cabling to connect components seamlessly and ensure fast response times in emergencies. Selecting the right cables for alarm systems is crucial for maintaining system reliability and ensuring that signals from sensors reach the control panel without delay.

Sensor Connections: Alarm systems typically use different sensors, such as motion detectors, window/door contacts, and glass break detectors. These sensors are connected to the control panel using cables that ensure stable signal transmission. Twisted pair cables are commonly used here, as they provide reliable signal quality and help minimize interference. Shielded cables are particularly effective in environments with high electromagnetic interference, ensuring sensor signals remain clear and uninterrupted.

Audio and Siren Alerts: When alarms include sirens or other audio alert systems, cabling must be capable of handling higher current loads. Thicker gauge cables are typically preferred for these applications, as they can safely carry the necessary power to drive loud, attention-grabbing alerts without risking overheating or power loss.

Wireless Considerations: While cabling remains essential, some alarm systems may incorporate wireless technology for flexibility in specific areas. This can reduce the cabling needs and simplify setup, though core connections are often wired for reliability.

Practical Considerations

Choosing the right cables is only one part of a successful security system setup; practical setup considerations are also essential to ensure optimal performance, durability, and ease of maintenance.

Cable Routing: Proper cable routing is critical to prevent interference, avoid physical damage, and maintain easy access for maintenance or upgrades. Cables should be routed away from power lines and other sources of electromagnetic interference, as this can degrade signal quality. Keeping cables organized and secured also prevents them from being accidentally cut or damaged, ensuring long-term reliability.

Compliance and Standards: Security system cabling must adhere to industry standards and local regulations to ensure safety and efficiency. For instance, codes like the National Electrical Code (NEC) and standards from the National Fire Protection Association (NFPA) provide guidelines for cable types and fire resistance. Compliance with these standards not only enhances the system's safety but can also simplify inspections and approvals.

Implementing these practical considerations can help extend the life of the cabling and ensure the system operates smoothly over time. Proper routing and adherence to standards can reduce the need for costly repairs or replacements, supporting a more effective and reliable security setup.
