Understanding Fiber Optic Terminology

Understanding fiber optic terminology is crucial for anyone involved in digital communications. Knowing key terms can improve communication and decision-making. This applies to both seasoned professionals and beginners. Understanding these terms is beneficial regardless of your level of experience in the industry. It can help you effectively convey your thoughts and make informed choices. This guide explains essential terms for fiber optic cables, including installation of cables, patch cables, and polarity basics. We aim to provide you with the knowledge to navigate the complex world of fiber optics confidently.

Basic Fiber Terminology

Fiber

"Fiber" or "fiber optic" refers to the technology that transmits information through thin glass or plastic filaments. A typical fiber consists of a glass core surrounded by cladding and protected by an acrylate coating. Fiber optic cables can transmit light signals over long distances with minimal loss. This is crucial for modern digital communication systems.

Fiber Optic Cables

When fiber is encased in a protective jacket, it becomes a fiber optic cable. These cables are essential for various applications and environments, including distribution, breakout, and loose tubes. Each type is specific for indoor installations, outdoor use, or rugged environments. It's important to know the differences in cables when choosing the right one for your fiber optic system.

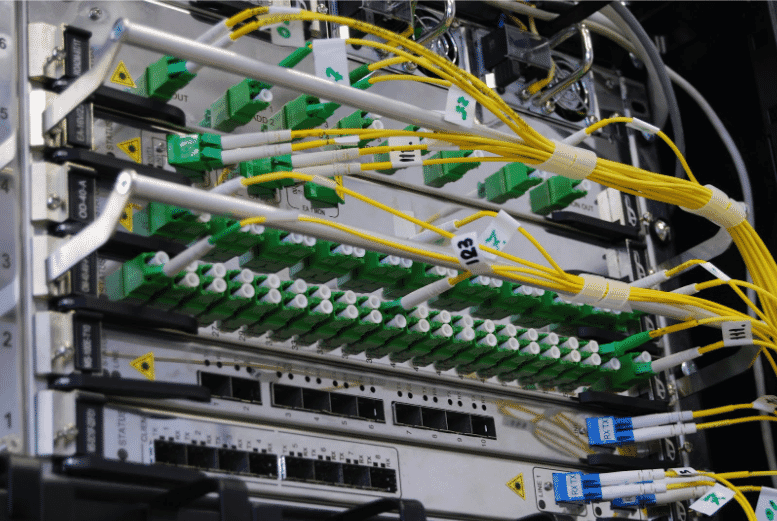

Fiber Optic Cabling

Fiber optic cabling goes beyond the cable itself. It has connectors and adapters that allow the fiber to connect with equipment and devices. Proper fiber optic cabling enables the system to operate efficiently and reliably, facilitating seamless data transmission.

Fiber Cable Assembly

A fiber cable assembly is a complete solution that includes a fiber optic cable, connectors, and adapters. Examples of fiber cable assemblies include patch cables and MPO trunks. These assemblies simplify connecting fiber optic systems, providing a convenient and efficient way to manage connections.

Understanding Duplex Fiber and Transmission

Duplex Fiber

Duplex fiber consists of two simplex fibers connected side by side, typically using a zip cord. This setup sends data in both directions using two separate fibers. Duplex fiber is ideal for applications requiring essential bidirectional communication, such as network connections between devices.

Duplex Transmission

Duplex transmission refers to the capability of transmitting signals in both directions. In a half-duplex system, signals can go back and forth but not simultaneously. Transmission switches between sending and receiving.

In contrast, a full-duplex system allows simultaneous bidirectional communication. In fiber optics, this bidirectional technology is often called "BiDi" (bidirectional), and it's crucial for maintaining continuous and efficient communication in many applications.

Fiber Connectivity Terms

Discrete Connector

A discrete connector is a single-fiber connector housed in a ferrule. Examples include LC (Lucent Connector) and SC (Subscriber Connector) connectors. These connectors help terminate fiber optic cables and provide stable, high-performance connections.v

Duplex Connector

A duplex connector consists of two discrete connectors to facilitate bidirectional communication. An example of a duplex connector is the LC duplex connector, which combines two LC connectors. These connectors can be molded together or remain separate depending on the specific application requirements.

Array Connector

An array connector, like an MPO (Multi-Fiber Push On) connector, can hold many fibers in one ferrule. These connectors are used in high-density applications where multiple fiber connections must be managed. Array connectors simplify the process of connecting multiple fibers. They are ideal for use in data centers and locations with a high concentration of fiber optic cables.

This type of connector is designed to streamline the installation and maintenance of fiber optic networks. It is particularly useful in situations where a large number of connections need to be made quickly and efficiently.

Fiber Polarity Basics

Polarity

Polarity in fiber optics is aligning the optical fibers for correct signal transmission from sender to receiver. This alignment ensures signals are transmitted accurately. It is important for the sender and receiver to be properly connected. Proper polarity helps maintain the integrity of the communication system. Misalignment can result in signal loss or cross-talk, degrading the performance of the fiber optic network.

Types

The term "Types" refers to the specific configuration of a component within the fiber optic system. For example, cable assemblies and couplers can have different types based on configuration. Standards define types such as Type A, B, C, U1, U2, A-A, and A-B. These types dictate how the fibers are arranged within connectors and adapters to maintain correct polarity.

Methods

Methods describe schemes for arranging component types to achieve the desired fiber polarity. These methods ensure the optical paths are correctly aligned between the transmitter and receiver. Different methods may be employed depending on the system's requirements and the specific types of components used.

Orientation

Orientation refers to the relative positioning of the keyed part of a connector or an adapter. A standard description includes using terms like KeyUp/KeyUp or KeyUp/KeyDown. Proper orientation is essential to prevent misalignment. In some connectors, it is important to align the fibers correctly to make sure the signal paths are maintained.

Pinning

Pinning involves aligning pins in MPO and other array connectors for proper mateability. These pins precisely align the fibers within the connectors. A connector in the pair has pins and is referred to as "male," while the other lacks pins and is known as "female." Correct pinning is crucial for maintaining the alignment and connectivity of the fiber strands.

Positioning

Positioning describes the correlation between the specific fiber strands within a connector ferrule. Proper positioning allows each fiber strand to be aligned with its corresponding strand in the mating connector. This precision is vital for maintaining the integrity of the optical signal paths.

Port Identification

Port identification involves labeling, coloring, or numbering ports on fiber optic systems to ensure easy identification and management. This helps technicians and engineers quickly identify and troubleshoot connections, enhancing the efficiency of maintaining and operating fiber optic networks.

Fiber Optics At Windy City Wire

Understanding the basic language of fiber optics is crucial for individuals working in the field of digital communication. Understanding terms like fiber, fiber optic cables, duplex transmission, and fiber polarity is important for making informed decisions and maintaining efficient communication systems.

We at Windy City Wire are committed to assisting you in understanding and using fiber optics. We provide the information and tools you need to do so. Understanding terms like fiber, fiber optic cables, duplex transmission, and fiber polarity is important for making informed decisions and maintaining efficient communication systems.

For more information about our fiber optic products, visit our SmartFIBER products page or contact us here. Equip yourself with the correct terminology and confidently manage your fiber optic systems.
