A security system is more essential than ever, with the demand for reliable security solutions extending across all sectors, from commercial establishments to residential buildings. A key component in any effective security system is the cabling infrastructure that supports it; this is where multi-cable solutions genuinely shine. Multi-cable systems, particularly multi-pair cables, are essential in enhancing the efficiency and reliability of security setups.

These cables offer many advantages, from streamlining the installation process to significantly improving system organization and performance. By consolidating multiple pairs of wires into a single cable, multi-cable solutions reduce wiring complexity, making installations faster and less prone to errors. Additionally, the organized structure of multi-pair cables helps maintain neat and efficient layouts, which can be critical in high-security environments where reliability is paramount.

With these benefits in mind, let’s explore why multi-pair cables have become the go-to choice for modern security systems.

Understanding Multi-Pair Cables

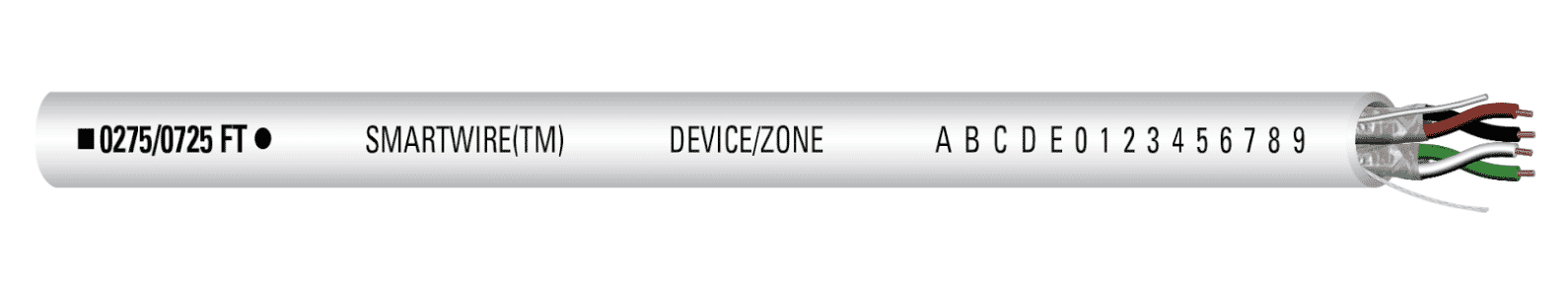

Multi-pair cables comprise multiple pairs of insulated wires within a single cable jacket. The wires in each pair are twisted together to help lessen electromagnetic interference (EMI). These cables transmit multiple signals simultaneously, making them ideal for complex systems requiring data, audio, or video signals.

Types of Multi-Pair Cables

Several types of multi-pair cables are available, each suited for different applications.

• Shielded vs. Unshielded: Shielded multi-pair cables include a protective layer that guards against EMI, while unshielded wires do not have this extra layer. Shielded cables are often used in environments with high electrical interference.
• Plenum-Rated vs. Non-Plenum-Rated: Plenum-rated cables are designed for use in buildings' plenum spaces, which work for air circulation. They are made with fire-retardant materials to meet safety regulations. On the other hand, non-plenum-rated cables are used in non-air-circulating spaces and do not have the exact stringent fire safety requirements.
• Cat5, Cat5e, Cat6, Cat6a, and Cat7: These category cables vary in data transmission speeds and bandwidth. Cat6a cables, for instance, offer higher speeds and greater bandwidth compared to Cat5 and Cat5e cables.

Applications

Multi-pair cables are versatile and used in various applications within security systems. These three tend to be the most common uses.

• Access Control Systems: Connect card readers, door locks, and control panels.
• CCTV Systems: Facilitates the transmission of video signals from cameras to recording and monitoring devices.
• Alarm Systems: Connects various alarm components, such as sensors, control panels, and alert devices.

Advantages of Multi-Pair Cables in Security Systems

Improved Organization

One of the primary benefits of using multi-pair cables in security systems is the improved organization of the cabling infrastructure. By consolidating multiple pairs of wires into a single cable, multi-pair cables help reduce clutter and simplify cable management. This streamlined approach makes it easier for technicians to identify and troubleshoot issues, leading to faster maintenance and repair times.

Reduced Installation Time

Multi-pair cables significantly reduce installation time. Instead of running multiple single-pair cables, technicians can install a single multi-pair cable, which carries all the necessary connections. This speeds up the installation process and reduces the labor costs associated with cabling projects. For large-scale security systems, the time savings can be substantial, allowing projects to be completed on schedule and within budget.

Enhanced Performance

Multi-pair cables offer enhanced performance compared to single-pair cables. The twisted-pair design helps minimize EMI, allowing reliable signal transmission even in electrically noisy environments. This is particularly important in security systems, where signal integrity is crucial for adequately functioning access control systems, CCTV, and alarm systems. Additionally, multi-pair cables can support higher data transmission rates, making them suitable for modern security applications that require high-speed connectivity.

Multi-Pair Cable Solutions

Product Overview

Our multi-cable solutions are meticulously designed to cater to diverse and demanding needs. These multi-pair cables are crafted to focus on durability and high performance, ensuring they meet the rigorous standards required for effective security installations. Available in various types, including shielded and unshielded options and plenum-rated and non-plenum-rated versions, our cables provide versatile solutions suitable for various security applications, ensuring reliability and consistency in any environment.

Technological Edge

The technological sophistication of our multi-pair cables sets them apart in the industry. These multi-cable solutions are built to endure even the harshest conditions, with features that allow them to withstand high temperatures, making them ideal for use in challenging environments. Our shielding also provides robust protection against electromagnetic interference (EMI), ensuring that signal integrity is maintained even in areas with high interference levels. This ensures that your security system remains reliable and effective, regardless of external conditions.

Optimizing Multi-Pair Cable Deployment

Pre-Deployment Planning

Effective deployment of multi-pair cables in security systems begins with thorough pre-planning. A comprehensive site assessment is essential to identify potential challenges and specific requirements. Developing a detailed deployment plan that outlines the cable routes, required lengths, and necessary safety protocols is crucial. This preparation ensures that the installation process proceeds smoothly, adheres to all relevant regulations, and maintains the integrity of the security system.

Essential Tools and Resources

Having the appropriate tools and resources is key to a successful deployment. Access to reliable cable testers, fish tapes, cable pullers, and termination tools can significantly enhance the process's efficiency and quality. Additionally, comprehensive technical documentation and guidelines are invaluable, providing the necessary information to follow best practices and avoid common issues.

Overcoming Common Challenges

Deploying multi-pair cables in complex environments often presents challenges such as electromagnetic interference (EMI), physical damage, and environmental factors. Shielded multi-pair cables can be particularly effective in minimizing EMI, ensuring reliable signal transmission even in areas with high levels of electrical noise. Choosing specifically rated cables for the installation environment is essential to prevent physical damage to the cables and unfavorable environmental conditions. For example, high-temperature or outdoor-rated cables should be used in areas exposed to extreme conditions.

Comparison with Other Cabling Options

Single-Pair vs. Multi-Pair Cables

Single-pair cables consist of just one pair of wires, making them suitable for simple, low-data applications. However, they can become cumbersome and inefficient in complex systems requiring multiple connections. Multi-pair cables, on the other hand, consolidate multiple pairs into a single sheath, streamlining installation and improving organization.

Multi-Conductor Cables

Multi-conductor cables contain multiple individual conductors within a single cable but are not necessarily twisted into pairs. They are used in applications where individual signals need to be transmitted separately. While useful in specific scenarios, they may not offer the same EMI protection and performance as twisted multi-pair cables.

Evolving Trends in Security System Cabling

Technological Advancements

The security industry and the technology behind cabling solutions are continuously advancing. Current developments include cables with enhanced shielding materials, increased bandwidth capabilities, and improved durability. Additionally, innovations in cable manufacturing are leading to lighter and more flexible cables, simplifying installation and maintenance.

Integration with Smart Technologies

As smart technologies become more integrated into various systems, security systems are also expected to work cohesively with other building systems. Multi-pair cables supporting data and power transmission (such as Power over Ethernet or PoE) will likely increase use, providing a streamlined solution for connecting smart devices.

Market Trends

The growing sophistication of security systems drives a greater demand for high-performance, reliable cabling solutions. In contemporary security setups, multi-pair cables of superior quality are a must, with the increasing popularity of remote monitoring and management, which has increased the demand for reliable data transmission capabilities.

How We Help

Making the correct cabling infrastructure choice is important for maintaining performance and dependability in the complicated world of security systems. Multi-pair cables offer significant benefits, such as improved organization, enhanced performance, and long-term cost-effectiveness. Security professionals can create robust, efficient, and scalable systems to meet evolving needs by opting for high-quality multicable solutions.

Our multi-pair cables are designed to meet the highest quality and durability standards, making them ideal for various security applications. With our complete field systems solution and a solid commitment to customer satisfaction, we provide the reliable cabling solutions you need to build effective security systems.

Visit the Windy City Wire Security Access Control Resource Center to learn more about our multi-pair cable offerings and discover our full range of security products. Partner with us to ensure your security systems are built on a foundation of excellence and ready to tackle today's challenges.
